7.62×25mm Tokarev
TypePistol
Place of originSoviet Union
Production history
Produced1930–Present[1]
Specifications
Parent case7.63×25mm Mauser
Bullet diameter7.62 (.310)
Neck diameter8.49 mm (0.334 in)
Shoulder diameter9.48 mm (0.373 in)
Base diameter9.83 mm (0.387 in)
Rim diameter9.95 mm (0.392 in)
Rim thickness1.32 mm (0.052 in)
Case length25.00 mm (0.984 in)
Overall length35.20 mm (1.386 in)
Case capacity1.09 cm3 (16.8 gr H2O)
Rifling twist240 mm (1:9.45 inches)
Primer typeBerdan or boxer small pistol
Ballistic performance
Bullet mass/typeVelocityEnergy
5.5 g (85 gr) JHP[2]376 m/s (1,230 ft/s)390 J (290 ft⋅lbf)
5.8 g (90 gr) FMJ[2]409 m/s (1,340 ft/s)488 J (360 ft⋅lbf)
5.5 g (85 gr) FMJ[3]469 m/s (1,540 ft/s)605 J (446 ft⋅lbf)
5.5 g (85 gr) FMJ[4]497 m/s (1,630 ft/s)697 J (514 ft⋅lbf)
5.5 g (85 gr) JHP[4]482 m/s (1,580 ft/s)655 J (483 ft⋅lbf)
Test barrel length: 120mm (4.724 in)

The 7.62×25mm Tokarev cartridge (designated as the 7,62 × 25 Tokarev by the C.I.P.[5]) is a Russianrimless bottlenecked pistolcartridge widely used in former Soviet states, and in China among other countries. The cartridge has since been replaced in most capacities by the 9×18mm Makarov in Russian service.[6]

History[edit]

Prior to the First World War, the 7.63×25mmMauser C96 pistol gained in popularity worldwide. In 1908, the Tsarist army placed the C96 on a list of approved sidearms that officers could purchase at their own expense in lieu of carrying the Nagant M1895 revolver. Between 1914 and 1917, more Mauser pistols and ammunition were obtained as captured arms from German and Turkish forces. The Mauser and its cartridge were used on all fronts of the Russian Civil War and in the 1920s, during a period of relatively close cooperation between Soviet Russia and the Weimar Republic, the Red Army purchased batches of the smaller Bolo version as well as ammunition for use by its officers. Although a copy of the cartridge was being produced at the Podolsky Ammunition Factory, the Soviets eventually purchased a license and manufacturing equipment from DWM in Germany to produce the cartridge.

In 1929, the Soviet Artillery Committee made a proposal to develop a domestic pistol chambered for the Mauser cartridge. After considerable research and development, it was decided that the 'Model 1930 7.62 mm pistol cartridge,' essentially the Mauser round with minor modifications, was to become the standard caliber for Soviet pistols and submachine guns. Early versions of the Vasily Degtyaryov-designed PPD-40 submachine gun were marked for Mauser cartridge caliber 7.62 mm.

Although dimensionally similar to the Mauser cartridge, so much so that both cartridges will chamber, load and fire in any of these weapons, the Soviets increased the power of the Tokarev cartridge powder charge significantly. As such, while the lower-power Mauser rounds can be safely used in any of these weapons, the Tokarev cartridge is not safe for use in weapons which were not designed for the added pressure.

Cartridge dimensions[edit]

The 7.62×25mm Tokarev has 1.09 ml (16.8 grains H2O) cartridge case capacity.

7.62×25mm Tokarev maximum C.I.P. cartridge dimensions[5] All sizes in millimeters (mm).

Americans would define the shoulder angle at alpha/2 = 19 degrees. The common riflingtwist rate for this cartridge is 240 mm (1 in 9.45 in), four grooves, diameter of lands = 7.62 mm (0.300 in), diameter of grooves = 7.92 mm (0.312 in), land width = 3.81 mm (0.150 in) and the primer type is Berdan or boxer small pistol.[5]

According to the official C.I.P. (Commission Internationale Permanente pour l'Epreuve des Armes à Feu Portatives) rulings the 7.62×25mm Tokarev case can handle up to 250.00 MPa (36,259 psi) Pmax piezo pressure. In C.I.P. regulated countries every handgun cartridge combo has to be proofed at 130% of this maximum C.I.P. pressure to certify for sale to consumers.This means that 7.62×25mm Tokarev chambered arms in C.I.P. regulated countries are currently (2017) proof tested at 325.00 MPa (47,137 psi) PE piezo pressure.[5]

Design[edit]

Sellier & Bellot 7.62x25mm Tokarev all-brass cartridge

The cartridge is in principle an enhanced Russian version of the 7.63×25mm Mauser. The Russians produced a wide array of loadings for this cartridge for use in submachine guns.[citation needed] These include armor-piercing, tracer, and incendiary rounds. This cartridge has excellent penetration and can easily defeat lighter ballistic vests (NIJ level I and IIA) as well as some kevlar helmets, such as the American PASGT helmet. When fired from a carbine-length barrel, the cartridge may penetrate NIJ level II, but is sometimes stopped by the current standard armor NIJ level IIIA. (Level IIIA is an advanced version of the Level II that can stop faster bullets than Level II, but does not meet the Level III standard. NIJ standards factor in up to 1400 fps of bullet velocity; higher-velocity rounds can eventually penetrate them, but by definition, level III must be able to stop any 7.65 mm bullet [7]). Although most firearms chambered in this caliber were declared obsolete and removed from military inventories, some police and special forces units in Russia, Pakistan and China may still use it because of the large quantity of stored ammunition available.

There is a common misconception that military surplus 7.62 Tokarev ammunition uses copper-coated mild steel bullets, and that this increases the chance of dangerous ricochets when fired at hard targets and can damage bullet traps often used on shooting ranges. While steel-core ammunition in 7.62×25 is available internationally, in the United States the importation of 7.62×25 cartridges loaded with copper-coated steel bullets is illegal; federal law defines these as armor-piercing pistol ammunition. So-called steel bullets sold are generally lead-core bullets with copper-washed steel jackets, and these do not present a significantly greater risk of ricochet than a standard copper-jacketed projectile.[citation needed]

In 2018, 7.62×25 ammunition was available for export from Romania, Czech Republic, Bulgaria, Serbia, and Russia.

Reloading 7.62 X25 Tokarev

Reloading[edit]

Reloadable cartridge cases can be produced by resizing and trimming 9mm Winchester Magnum brass, or alternately by reforming 5.56×45mm NATO. The cartridge case is inserted into the open-topped die, which produces a shoulder in the correct position, and the portion of the case projecting through the top is sawed off. Afterward, a reamer—which fits a tap handle—is used to ream out the new case neck to an acceptable thickness. This is necessary because a powerful rifle cartridge has just been cut back to where the brass is relatively thick and must be thinned if excessive chamber pressures are to be avoided in the pistol. Alternately, reloaders in the US can purchase proper, new cases from Starline Mfg. Use .308' or .309' bullets for reloading for the Tokarev TT-33 and Czech CZ-52. Mauser C96 and C30 'Broomhandle' pistols typically have oversized bores, and .311' bullets may be needed to produce acceptable accuracy. However, firing the 7.62x25 out of a Mauser C96 is not recommended, as it is too hot and will destroy the pistol. Hornady makes an 85-grain .309' 'XTP' bullet that functions well in all these pistols. On the Starline website, information is given about using the slightly less powerful, but otherwise nearly identical ammunition designed for the Mauser C96 pistol (7.63×25mm Mauser) from which the Tokarev cartridge was derived, in pistols chambered for the Tokarev round. This was common practice by Finnish and German forces in WWII.[8]

Performance[edit]

The pistol-fired bullet has various muzzle velocities around the range of 1,300 to 1,800 fps. A common velocity is around 442 metres per second (1,450 ft/s) with about 544 joules (401 ft⋅lbf) of energy. Given the wide disparity in ammunition manufactured in many different nations, ammunition is encountered that yields higher and lower velocities. Some newly manufactured ammunition intended for commercial use has a velocity of approximately 1,560 feet per second (480 m/s). Wolf Gold FMJ tops out at 1,720 feet per second (520 m/s) with 570 foot-pounds force (770 J) as does PPU ammunition. Some of this ammunition, such as the Wolf Gold and Sellier & Bellot, use boxer primed brass cases that are reloadable.

Notable variants[edit]

The Soviet P-41 was a 74 grain, steel-cored, incendiary variant produced for use in the PPSh-41 and PPS-43 during World War II. This ammunition would achieve a velocity of 1,600 feet per second when fired from these weapons.

The Chinese 7.62mm Type P is a special subsonic, heavy, pointed (spitzer) loading of the cartridge, designed specifically for use in suppressed firearms. The Chinese-produced standard loading of the cartridge is designated as the Type 64.[9]

Weapons and service use[edit]

Chinese copy of the TT-33 called the Type 54 with 7.62×25mm ammo

The most notable use of this cartridge was in the Tokarev TT-33 pistol, which was the Soviet Union's standard service pistol from the early 1930s until the mid-1950s. It was also used in the Czech ČZ vz. 52, which was the standard Czech service pistol from 1952 until 1982. In addition, the cartridge was used in numerous submachine guns, including the Soviet PPD-40, PPSh-41, and PPS-43, the Russian PP-19 Bizon, the East German WG66, the Czech Sa 24 and Sa 26. Norinco of China makes a line of Sig-Sauer clones including the NP762 chambered in 7.62x25mm Tokarev.[10]

One of the strangest weapons attempted for this cartridge was the LAD light machine gun (5.6 kg empty weight, 960 mm length), developed the Soviet designers V.F. Lyuty, N.M. Afanasyev and V.S. Daykin during 1942-1943. Only two prototypes were built and it was not accepted for service.[11]

Outside COMECON countries it is not so common; however after the Cold War, many weapons, especially pistols, were exported and the round is still in production. The cartridge was also used in the Russian OTs-27 Berdysh[12] and OTs-39 submachine gun, the North VietnameseK-50M and VPA/Viet Minh modified MAT-49s, and the Yugoslav M49 and M56, the latter gun being developed from the design of the German MP40. Aftermarket conversion sleeves are also available that enable this round to be fired using the Mosin–Nagant family of rifles.[citation needed]

Gallery[edit]

  • 7.62mm Tokarev rounds. Left: Brass case FMJ. Right: lacquered steel case.

  • Round comparison 22 Long Rifle (lead round nose), .32 ACP/7.65mm Browning, 7.62×25mm Tokarev, .380 ACP / 9mm Kurz, 9mm Makarov, 9×19mm Parabellum, .38 Special (hollow point), .40 Smith & Wesson, .45 ACP (hollow point)

  • Rear view of the head-stamp on a Sellier & Bellot 7.62mm Tokarev cartridge

Synonyms[edit]

  • 7.62mm Type P
  • 7.62mm Type 51
  • 7.62mm Tokarev
  • 7.62×25mm TT
  • .30 Tokarev
  • Czech M48
  • 7.62 TT
  • .30 Bore - Pakistan Ordnance Factory (used for both 7.63mm Mauser and 7.62mm Tokarev)

See also[edit]

References[edit]

  1. ^Barnes, Frank C (1997) [1965]. McPherson, ML (ed.). Cartridges of the World (8th ed.). DBI Books. p. 240. ISBN0-87349-178-5.
  2. ^ ab'Load data'. Makarov. Archived from the original on 6 December 2008. Retrieved 2008-12-19.
  3. ^'Sellier and Bellot Cartridge Data'. Archived from the original on 2008-12-19. Retrieved 2008-12-19.
  4. ^ ab'Wolf Ammunition Cartridge Data'. Retrieved 2008-12-19.
  5. ^ abcd'C.I.P. TDCC datasheet 7,62 x 25 Takorev'(PDF).
  6. ^'Журнал для спецназа «Братишка» — АРСЕНАЛ: Пистолет ГШ-18 - детище тульских оружейников'. bratishka.ru. Archived from the original on 2011-10-05. Retrieved 2011-05-13.
  7. ^'Ballistic Resistance of Body Armour'(PDF). Retrieved 17 August 2020.
  8. ^'JAEGER PLATOON: FINNISH ARMY 1918 - 1945 WEBSITE'. www.jaegerplatoon.net.
  9. ^'Type 85'. Modern Firearms. 2010-10-27. Retrieved 2019-06-08.
  10. ^https://marstar.ca/product/norinco-p226-style-762x25-tokarev/
  11. ^Руслан Учмак, 'Не вписавшийся в классификации. Лёгкий пулемёт под пистолетный патрон конструкции Лютого, Афанасьева и Дейкина.', Братишка 2012/5, pp. 82-87
  12. ^Jones, Richard (2009). Jane's Infantry Weapons 2009/2010. Jane's Information Group. p. 57. ISBN0-7106-2869-2.
  • Cartridges of the World 11th Edition, Book by Frank C. Barnes, edited by Stan Skinner, Gun Digest Books, 2006, ISBN0-89689-297-2 pp. 288, 337

External links[edit]

Wikimedia Commons has media related to 7.62 Tokarev.
Retrieved from 'https://en.wikipedia.org/w/index.php?title=7.62×25mm_Tokarev&oldid=977312874'
Reloading 7.62 X25 Tokarev7.62x25 Tokarev Load Data for the CZ-52 Pistol.

(If using this load data for TT-33 Type Tokarev Pistols, Start at 15% below the Min. Charge given, and work up Slowly.)

Disclaimer
Reloading metallic cartridges may be extremely hazardous if not done properly. Nothing can replace experience and a good reloading guide from a reputable manufacturer of reloading components. Always reduce all minimum powder charges by 10% and 'work up' a load if no signs of over-pressure are evident (bulged cases, flattened primers, etc.). Loads listed are test loads in the author's firearms, and may not be safe in any other firearms.

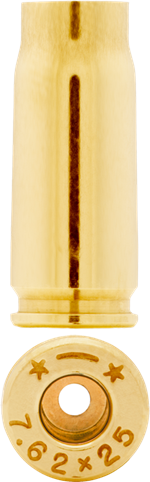

All loads developed with New Starline Brass and Winchester Small Pistol Primers.


71 Grain FMJ-RN Bullet

Powder TypeStarting Charge (grains)Velocity (fps)Max Charge (grains)Velocity (fps)Source
Vit. 3N-376.08.3Sierra
AA #78.110.7Sierra
Blue Dot8.010.0Sierra
N-11010.013.5Sierra
N-3405.17.4Sierra
Unique5.07.3Sierra
W-5406.98.7Sierra
WSL4.76.4Win
AA #55.814256.31460Lee


85 Grain Jacketed Hollow Point Bullet
86 Grain Jacketed Soft Point - Round Nose

Powder TypeStarting Charge (grains)Velocity (fps)Max Charge (grains)Velocity (fps)Source
AA#55.811856.81235Lee
AA #77.114217.7Lee
AA #24.213304.7Lee
Bullseye3.312005.01390Internet
Bullseye4.610765.01151Internet
Unique5.812606.01290Internet


90 - 93 Grain Jacketed Bullet
93 Grain Lead Round Nose Bullet

Powder TypeStarting Charge (grains)Velocity (fps)Max Charge (grains)Velocity (fps)Source
AA#55.513436.2Lee
AA #76.813637.5Lee
AA #77.08.7Sierra
AA #24.212654.7Lee
Bullseye3.211733.6Internet
Win 2313.810854.2Sierra
HP383.510703.9Internet
V-N3404.411505.9Sierra
24008.611.8Internet
800-X5.07.0Sierra
HS-76.88.1Internet
Win 29610.214.4Internet
WSL3.95.4Internet
Win 540 4.66.6Sierra
Univ. Clays4.56.0Sierra
Blue Dot6.47.3Internet
H-11010.314.2Internet
Unique6.61500Sierra Accuracy Load

95 Grain Lead Semi Wad Cutter

Powder TypeStarting Charge (grains)Velocity (fps)Max Charge (grains)Velocity (fps)Source
AA #77.51198Sierra
AA #77.01072Sierra

100 Grain 'Plinker' Short Jacket Soft Point Bullet

Powder TypeStarting Charge (grains)Velocity (fps)Max Charge (grains)Velocity (fps)Source
AA#55.312685.8Lee
AA #76.713027.2Lee
AA #24.012004.4Lee
Tokarev


110 Grain FMJ or Jacketed Soft Point - Round Nose Bullet
113 Grain Cast Lead Bullet

Powder TypeStarting Charge (grains)Velocity (fps)Max Charge (grains)Velocity (fps)Source
AA#57.28.0Lee
AA #78.69.5Lee
AA #25.66.2Lee
AA #77.01140Internet

Reloading 7.62 X 25 Tokarev


46 Grain JHP w/ .30 Caliber Sabot (53 grain total Projectile weight)

Powder TypeStarting Charge (grains)Velocity (fps)Max Charge (grains)Velocity (fps)Source
Vit. 3N-376.015758.3?Test Data Not Confirmed
AA #78.110.7Test Data Not Confirmed
Bullseye4.8?5.2?Test Data Not Confirmed
N-11010.013.5Test Data Not Confirmed
N-3405.17.4Test Data Not Confirmed
W-5406.98.7Test Data Not Confirmed
WSL4.76.4Test Data Not Confirmed
AA #55.815506.31730Test Data Not Confirmed, Internet Load
